PJS6417_S1_00001

In Stock: 5,980

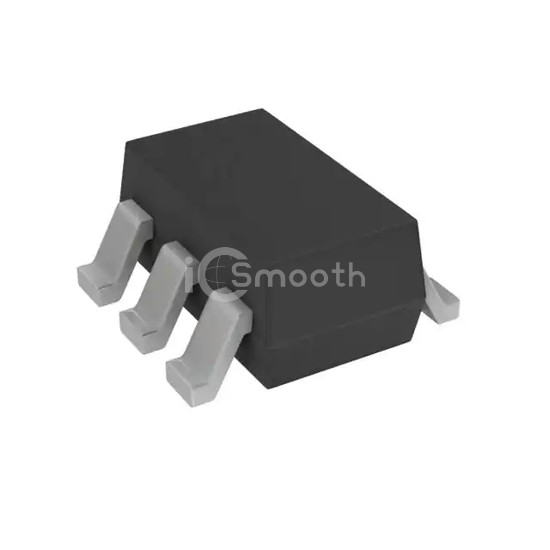

PJS6417_S1_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJS6417_S1_00001 Panjit International Inc.
PJS6417_S1_00001

Panjit International Inc.

20V P-CHANNEL ENHANCEMENT MODE M

PJS6417_S1_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 20V P-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Request a Quote

In Stock: 5,980

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs35mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.9 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1760 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-6
Package / CaseSOT-23-6
