PJQ5494_R2_00001

In Stock: 8,871

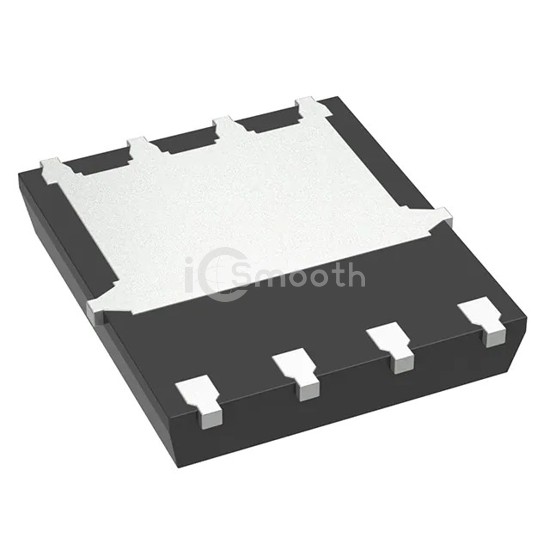

PJQ5494_R2_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJQ5494_R2_00001 Panjit International Inc.
PJQ5494_R2_00001

Panjit International Inc.

150V N-CHANNEL ENHANCEMENT MODE

PJQ5494_R2_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 150V N-CHANNEL ENHANCEMENT MODE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,871

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C5A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs35mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs52 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2207 pF @ 75 V
FET Feature-
Power Dissipation (Max)2W (Ta), 131W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN5060-8
Package / Case8-PowerVDFN
