PJQ4476AP-AU_R2_000A1

In Stock: 5,894

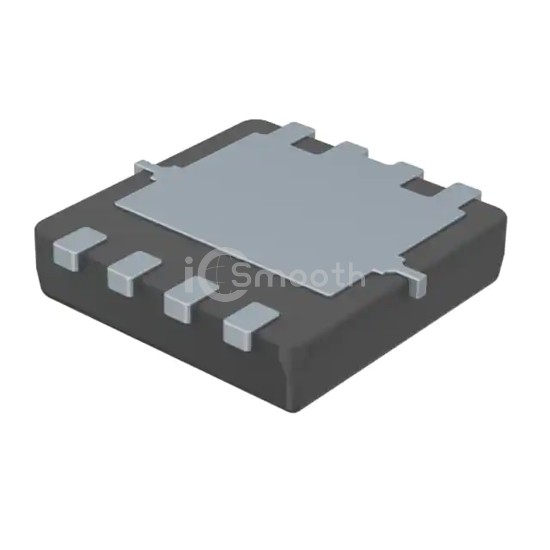

PJQ4476AP-AU_R2_000A1 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJQ4476AP-AU_R2_000A1 Panjit International Inc.
PJQ4476AP-AU_R2_000A1

Panjit International Inc.

100V N-CHANNEL ENHANCEMENT MODE

PJQ4476AP-AU_R2_000A1 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 100V N-CHANNEL ENHANCEMENT MODE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 5,894

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C6.3A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs31 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1519 pF @ 30 V
FET Feature-
Power Dissipation (Max)2W (Ta), 62W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN3333-8
Package / Case8-PowerVDFN
