PJQ2461-AU_R1_000A1

In Stock: 6,853

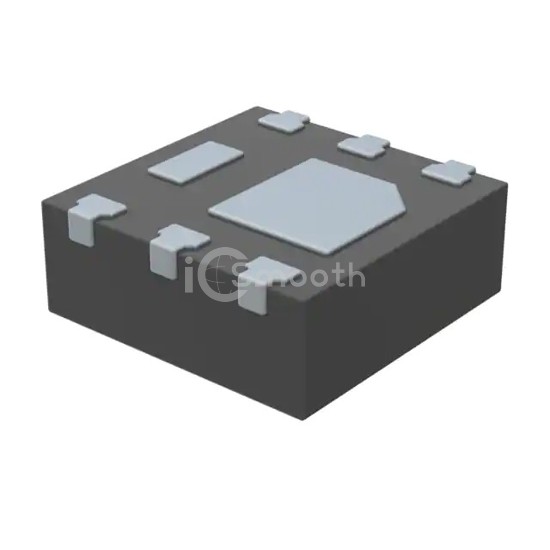

PJQ2461-AU_R1_000A1 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJQ2461-AU_R1_000A1 Panjit International Inc.
PJQ2461-AU_R1_000A1

Panjit International Inc.

60V P-CHANNEL ENHANCEMENT MODE M

PJQ2461-AU_R1_000A1 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 60V P-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Request a Quote

In Stock: 6,853

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs170mOhm @ 2A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds430 pF @ 30 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020B-6
Package / Case6-WDFN Exposed Pad
