Name: PJQ2409_R1_00001
Brand: Panjit International Inc.
SKU: PJQ2409_R1_00001
Price: 0.54 USD
Availability: InStock

REF: PJQ2409_R1_00001 Panjit International Inc.

PJQ2409_R1_00001

Panjit International Inc.

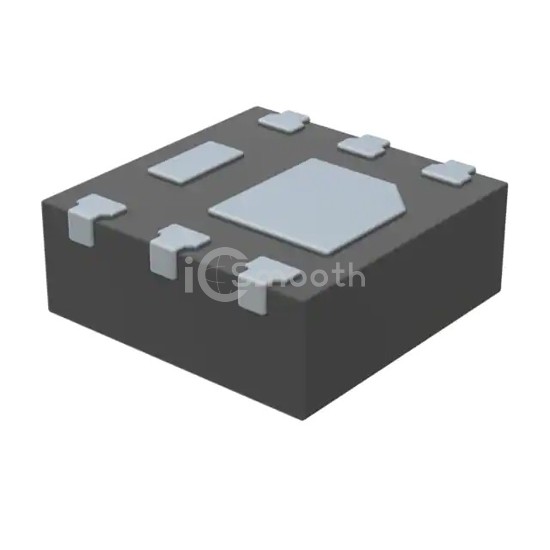

DFN2020B-6L, MOSFET

PJQ2409_R1_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. DFN2020B-6L, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,952

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	30mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN2020B-6
Package / Case	6-WDFN Exposed Pad
