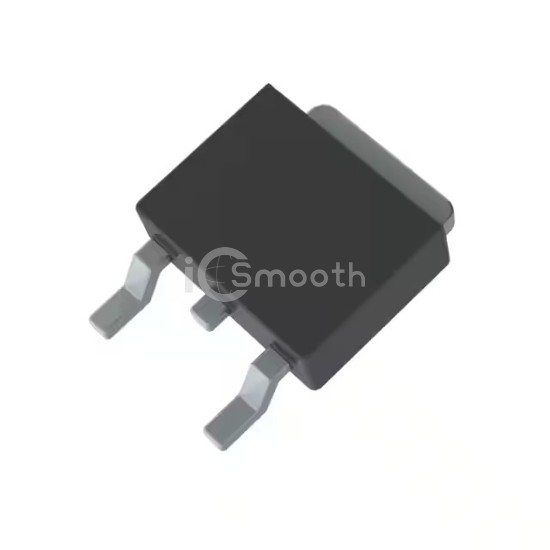

Name: PJMD390N65EC_L2_00001
Brand: Panjit International Inc.
SKU: PJMD390N65EC_L2_00001
Price: 7.23 USD
Availability: InStock

REF: PJMD390N65EC_L2_00001 Panjit International Inc.

PJMD390N65EC_L2_00001

Panjit International Inc.

650V SUPER JUNCITON MOSFET

PJMD390N65EC_L2_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 650V SUPER JUNCITON MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 6,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	390mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	726 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	87.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
