PJL9403_R2_00001

In Stock: 3,911

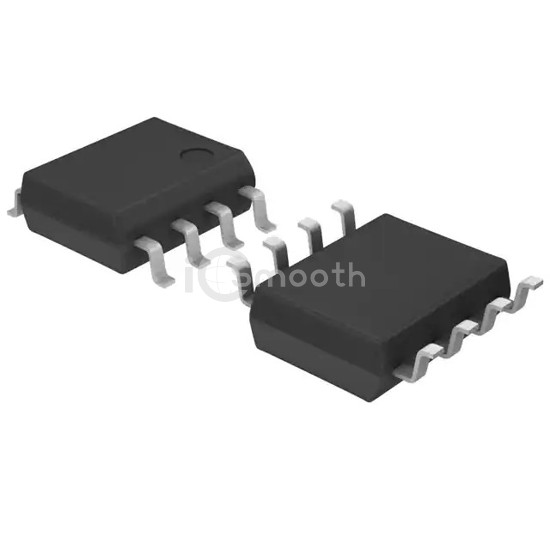

PJL9403_R2_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJL9403_R2_00001 Panjit International Inc.
PJL9403_R2_00001

Panjit International Inc.

30V P-CHANNEL ENHANCEMENT MODE M

PJL9403_R2_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 30V P-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Request a Quote

In Stock: 3,911

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs72mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds417 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
