PJF60R390E_T0_00001

In Stock: 7,072

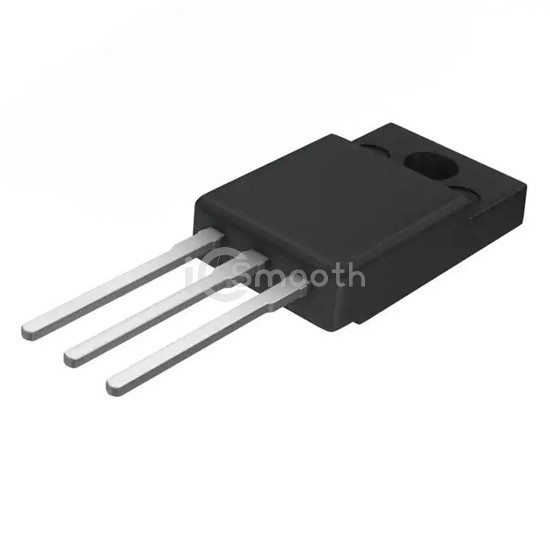

PJF60R390E_T0_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJF60R390E_T0_00001 Panjit International Inc.
PJF60R390E_T0_00001

Panjit International Inc.

600V N-CHANNEL SUPER JUNCTION MO

PJF60R390E_T0_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 600V N-CHANNEL SUPER JUNCTION MO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Request a Quote

In Stock: 7,072

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta), 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs390mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds531 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.04W (Ta), 53W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageITO-220AB
Package / CaseTO-220-3 Full Pack
