PJE138K-AU_R1_000A1

In Stock: 8,990

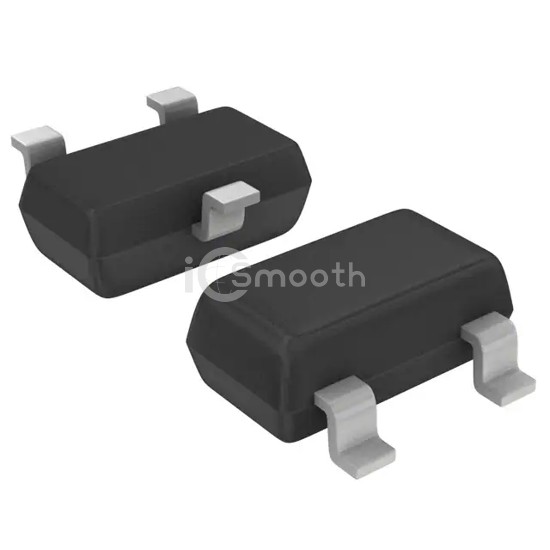

PJE138K-AU_R1_000A1 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJE138K-AU_R1_000A1 Panjit International Inc.
PJE138K-AU_R1_000A1

Panjit International Inc.

SOT-523, MOSFET

PJE138K-AU_R1_000A1 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. SOT-523, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-89, SOT-490.

Datasheet Request a Quote

In Stock: 8,990

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 25 V
FET Feature-
Power Dissipation (Max)223mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-523 Flat Leads
Package / CaseSC-89, SOT-490
