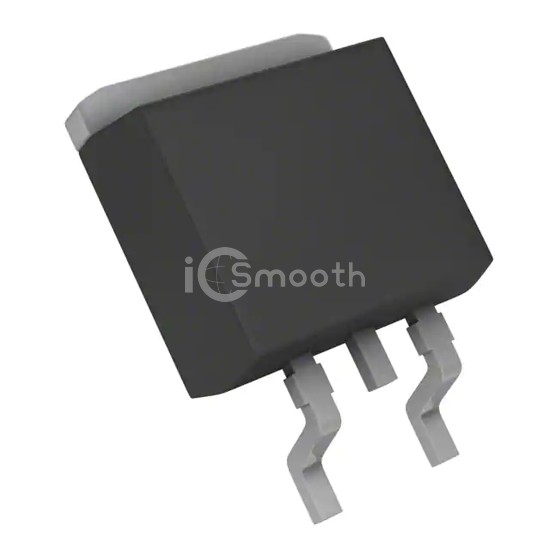

Name: PJD9N10A_L2_00001
Brand: Panjit International Inc.
SKU: PJD9N10A_L2_00001
Price: 0.58 USD
Availability: InStock

REF: PJD9N10A_L2_00001 Panjit International Inc.

PJD9N10A_L2_00001

Panjit International Inc.

100V N-CHANNEL MOSFET

PJD9N10A_L2_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 100V N-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 11,682

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta), 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	152mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1021 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
