PJD15P06A-AU_L2_000A1

In Stock: 8,500

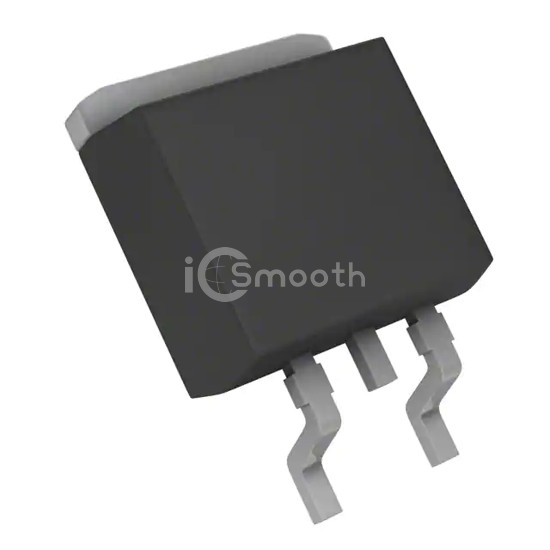

PJD15P06A-AU_L2_000A1 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJD15P06A-AU_L2_000A1 Panjit International Inc.
PJD15P06A-AU_L2_000A1

Panjit International Inc.

60V P-CHANNEL ENHANCEMENT MODE M

PJD15P06A-AU_L2_000A1 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 60V P-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 8,500

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C4A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs68mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds879 pF @ 30 V
FET Feature-
Power Dissipation (Max)2W (Ta), 25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
