PJC7401_R1_00001

In Stock: 20,975

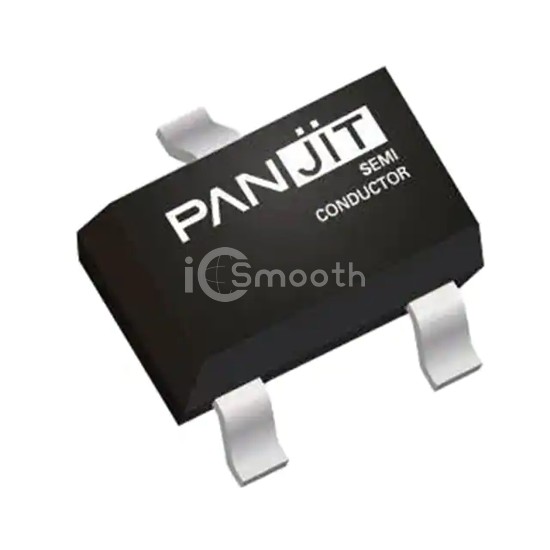

PJC7401_R1_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PJC7401_R1_00001 Panjit International Inc.
PJC7401_R1_00001

Panjit International Inc.

SOT-323, MOSFET

PJC7401_R1_00001 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. SOT-323, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 20,975

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs115mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds443 pF @ 15 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
