Name: DI1510_T0_00001
Brand: Panjit International Inc.
SKU: DI1510_T0_00001
Price: 0.73 USD
Availability: InStock

REF: DI1510_T0_00001 Panjit International Inc.

DI1510_T0_00001

Panjit International Inc.

DIP, GENERAL

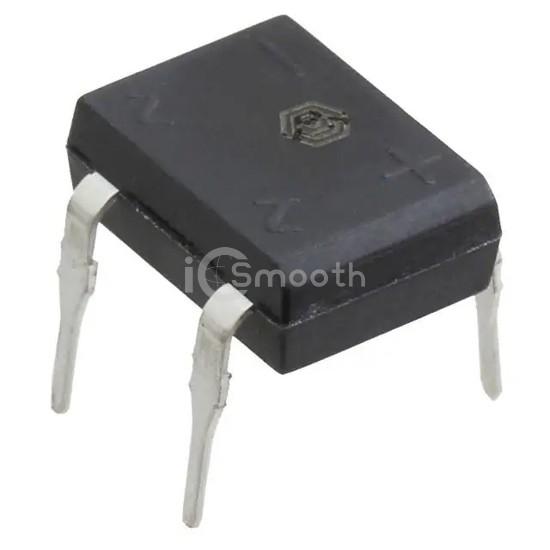

DI1510_T0_00001 is a Diodes - Bridge Rectifiers manufactured by Panjit International Inc.. DIP, GENERAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case 4-EDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 10

Tiered Pricing USD

1+ $0.7300 —

50+ $0.3288 -55%

100+ $0.2895 -60%

500+ $0.2203 -70%

1,000+ $0.1979 -73%

2,000+ $0.1791 -75%

5,000+ $0.1588 -78%

10,000+ $0.1462 -80%

50,000+ $0.1283 -82% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A

Current - Reverse Leakage @ Vr	5 µA @ 1000 V
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
