2N7002KW-AU_R1_000A1

In Stock: 31,833

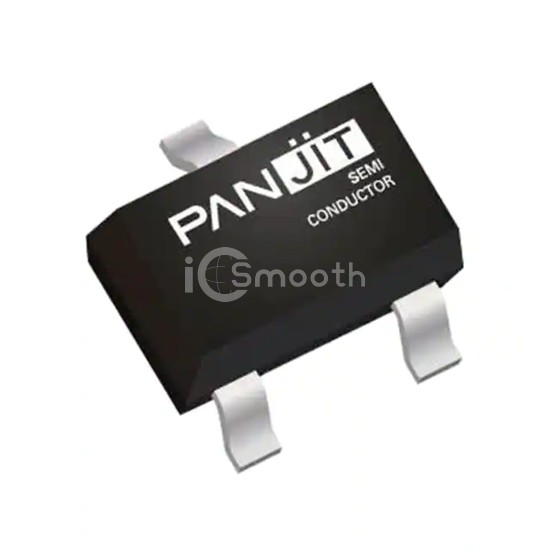

2N7002KW-AU_R1_000A1 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: 2N7002KW-AU_R1_000A1 Panjit International Inc.
2N7002KW-AU_R1_000A1

Panjit International Inc.

SOT-323, MOSFET

2N7002KW-AU_R1_000A1 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. SOT-323, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 31,833

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.8 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds24 pF @ 25 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
