SK8403170L

In Stock: 1,647

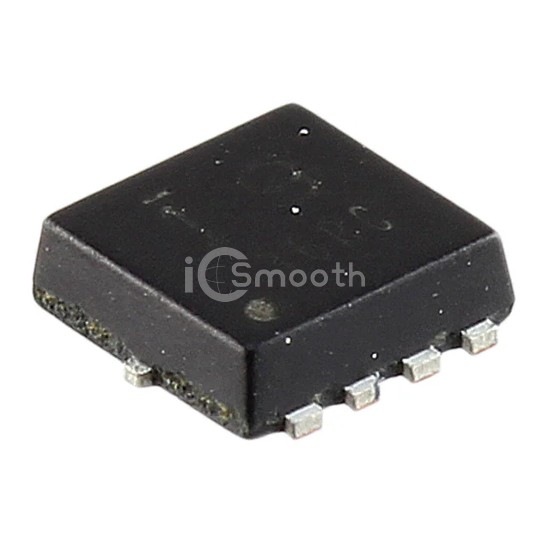

SK8403170L - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: SK8403170L Panasonic Electronic Components
SK8403170L

Panasonic Electronic Components

MOSFET N-CH 30V 16A 8HSSO

SK8403170L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 30V 16A 8HSSO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 1,647

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C16A (Ta), 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.1mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 2.56mA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2940 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Ta), 24.6W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageHSSO8-F1-B
Package / Case8-PowerSMD, Flat Leads
