Name: MTM867270LBF
Brand: Panasonic Electronic Components
SKU: MTM867270LBF
Availability: InStock

REF: MTM867270LBF Panasonic Electronic Components

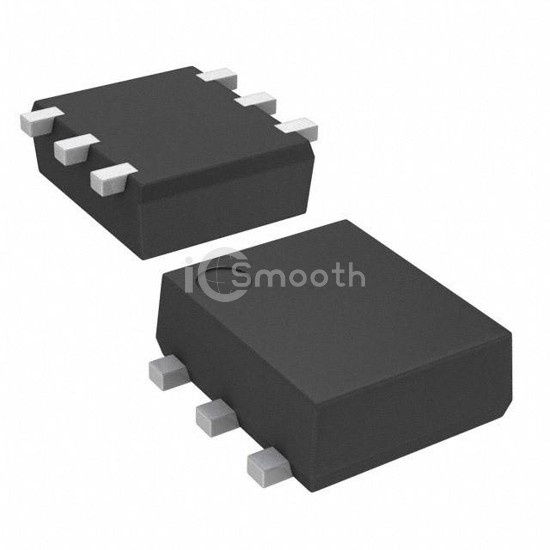

MTM867270LBF

MOSFET N-CH 20V 2.2A WSSMINI6-F1

MTM867270LBF is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 20V 2.2A WSSMINI6-F1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 6,566

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Rds On (Max) @ Id, Vgs	105mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	280 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	540mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	WSSMini6-F1
Package / Case	6-SMD, Flat Leads
