MTM761230LBF

In Stock: 489

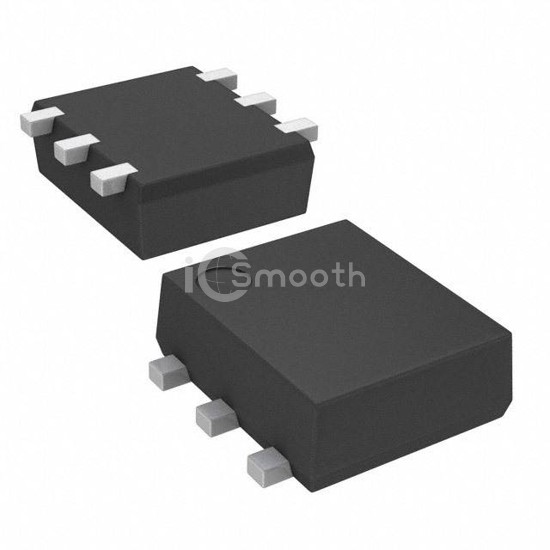

MTM761230LBF - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: MTM761230LBF Panasonic Electronic Components
MTM761230LBF

Panasonic Electronic Components

MOSFET P-CH 20V 3A WSMINI6

MTM761230LBF is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 20V 3A WSMINI6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 489

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4V
Rds On (Max) @ Id, Vgs55mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1000 pF @ 10 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWSMini6-F1-B
Package / Case6-SMD, Flat Leads
