Name: MTM231232LBF
Brand: Panasonic Electronic Components
SKU: MTM231232LBF
Availability: InStock

REF: MTM231232LBF Panasonic Electronic Components

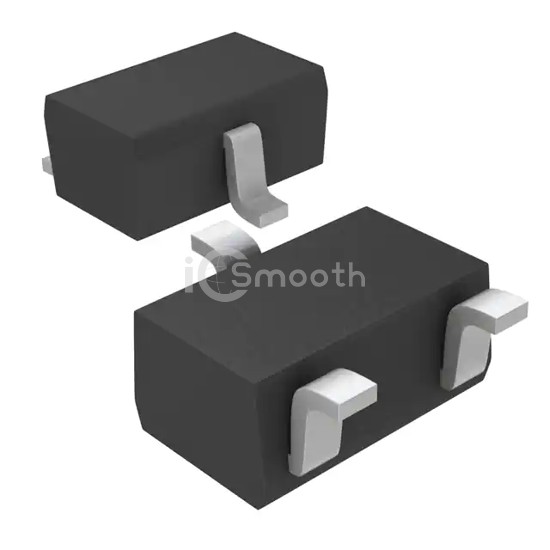

MTM231232LBF

MOSFET P-CH 20V 3A SMINI3-G1-B

MTM231232LBF is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 20V 3A SMINI3-G1-B. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 1,414

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	55mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1000 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SMini3-G1-B
Package / Case	SC-70, SOT-323
