FK8V03020L

In Stock: 1,166

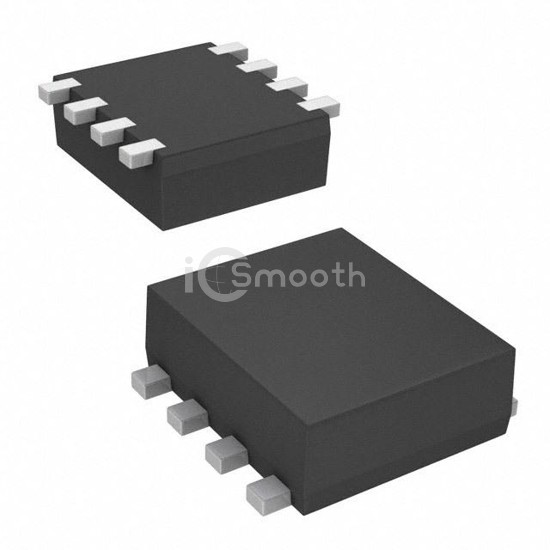

FK8V03020L - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: FK8V03020L Panasonic Electronic Components
FK8V03020L

Panasonic Electronic Components

MOSFET N CH 33V 14A WMINI8

FK8V03020L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N CH 33V 14A WMINI8. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 1,166

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)33 V
Current - Continuous Drain (Id) @ 25°C14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.6mOhm @ 7A, 10V
Vgs(th) (Max) @ Id3V @ 2.2mA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1500 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWMini8-F1
Package / Case8-SMD, Flat Lead
