FK4B01110L1

In Stock: 10

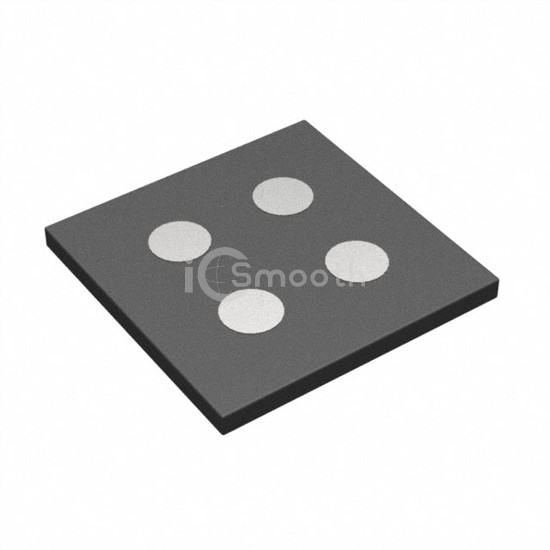

FK4B01110L1 - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: FK4B01110L1 Panasonic Electronic Components
FK4B01110L1

Panasonic Electronic Components

MOSFET N-CH 12V 2.3A ALGA004

FK4B01110L1 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 12V 2.3A ALGA004. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFLGA, CSP.

Datasheet Request a Quote

In Stock: 10

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs64mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 118µA
Gate Charge (Qg) (Max) @ Vgs2.55 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds274 pF @ 10 V
FET Feature-
Power Dissipation (Max)340mW (Ta)
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageALGA004-W-0606-RA01
Package / Case4-XFLGA, CSP
