FJ4B01110L1

In Stock: 1,845

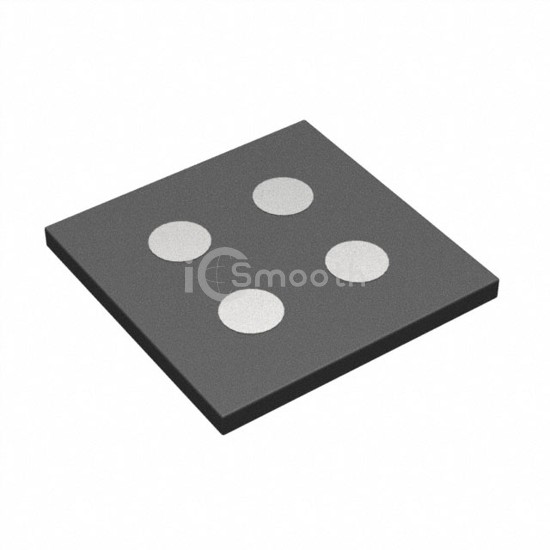

FJ4B01110L1 - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: FJ4B01110L1 Panasonic Electronic Components
FJ4B01110L1

Panasonic Electronic Components

MOSFET P-CH 12V 1.4A ALGA004

FJ4B01110L1 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 12V 1.4A ALGA004. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFLGA, CSP.

Datasheet Request a Quote

In Stock: 1,845

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs153mOhm @ 700mA, 4.5V
Vgs(th) (Max) @ Id1V @ 598µA
Gate Charge (Qg) (Max) @ Vgs3.3 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds226 pF @ 10 V
FET Feature-
Power Dissipation (Max)340mW (Ta)
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageALGA004-W-0606-RA01
Package / Case4-XFLGA, CSP
