Name: FJ4B01100L1
Brand: Panasonic Electronic Components
SKU: FJ4B01100L1
Availability: InStock

REF: FJ4B01100L1 Panasonic Electronic Components

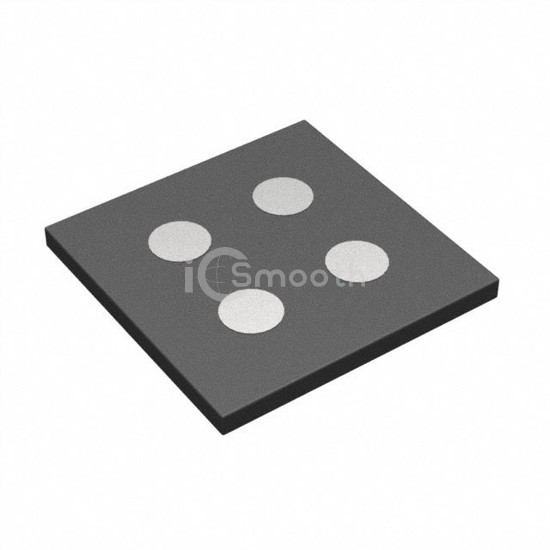

FJ4B01100L1

MOSFET P-CH 12V 2.2A XLGA004

FJ4B01100L1 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 12V 2.2A XLGA004. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFLGA, CSP.

Datasheet Request a Quote

In Stock: 7,110

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	74mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	459 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	XLGA004-W-0808-RA01
Package / Case	4-XFLGA, CSP
