FJ3P02100L

In Stock: 6,450

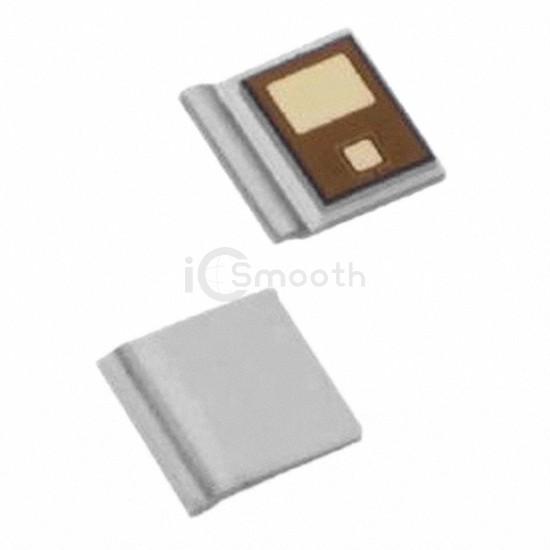

FJ3P02100L - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: FJ3P02100L Panasonic Electronic Components
FJ3P02100L

Panasonic Electronic Components

MOSFET P-CH 20V 4.4A 3PMCP

FJ3P02100L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 20V 4.4A 3PMCP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Non-Standard.

Datasheet Request a Quote

In Stock: 6,450

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2V, 4.5V
Rds On (Max) @ Id, Vgs12.5mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id1.05V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PMCP
Package / Case3-SMD, Non-Standard
