EVW-AE4001B14

In Stock: 196

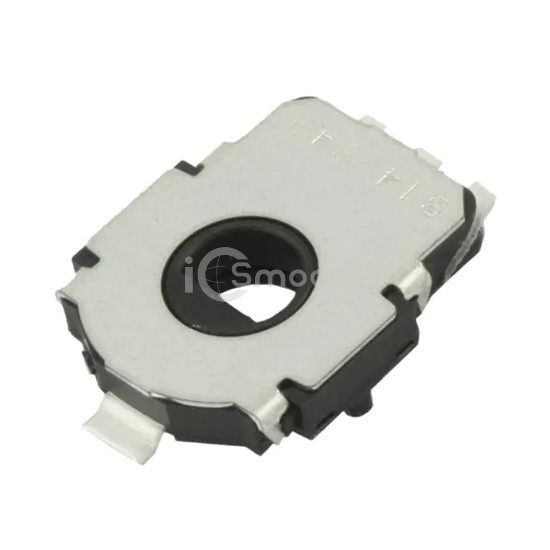

EVW-AE4001B14 - Panasonic Electronic Components - Position Sensors - Angle, Linear Position Measuring
REF: EVW-AE4001B14 Panasonic Electronic Components
EVW-AE4001B14

Panasonic Electronic Components

SENSOR ROTARY 343DEG SMD

EVW-AE4001B14 is a Position Sensors - Angle, Linear Position Measuring manufactured by Panasonic Electronic Components. SENSOR ROTARY 343DEG SMD. Key specifications: mounting type Surface Mount, package / case 4-SMD, Gull Wing, termination style SMD (SMT) Tab, resistance tolerance ±30%.

Datasheet Request a Quote

In Stock: 196

Tiered Pricing USD
1+ $1.4000 —
10+ $1.1790 -16%
25+ $1.1008 -21%
50+ $1.0448 -25%
100+ $0.9911 -29%
250+ $0.9241 -34%
500+ $0.8762 -37% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyResistive
Rotation Angle - Electrical, Mechanical0° ~ 343°
Linear Range-
OutputResistive
Output Signal-
Actuator TypeHole for Shaft
Linearity±2%
Resistance10 kOhms
Resistance Tolerance±30%
Voltage - Supply-
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-
Package / Case4-SMD, Gull Wing
Supplier Device Package-
