2SK3318

In Stock: 4,086

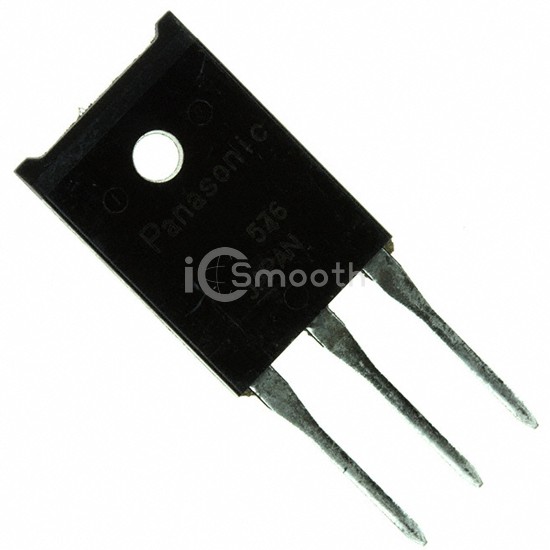

2SK3318 - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: 2SK3318 Panasonic Electronic Components
2SK3318

Panasonic Electronic Components

MOSFET N-CH 600V 15A TOP-3F-A1

2SK3318 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 600V 15A TOP-3F-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F.

Datasheet Request a Quote

In Stock: 4,086

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs460mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds3500 pF @ 20 V
FET Feature-
Power Dissipation (Max)3W (Ta), 100W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTOP-3F-A1
Package / CaseTOP-3F
