Name: 2SK303000L
Brand: Panasonic Electronic Components
SKU: 2SK303000L
Availability: InStock

REF: 2SK303000L Panasonic Electronic Components

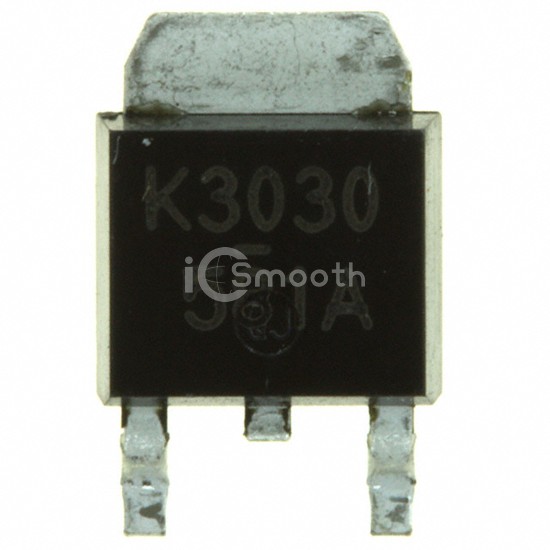

2SK303000L

MOSFET N-CH 100V 8A U-G1

2SK303000L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 100V 8A U-G1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 1,620

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	230mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	290 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 15W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-G1
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
