Name: 2SK302500L
Brand: Panasonic Electronic Components
SKU: 2SK302500L
Availability: InStock

REF: 2SK302500L Panasonic Electronic Components

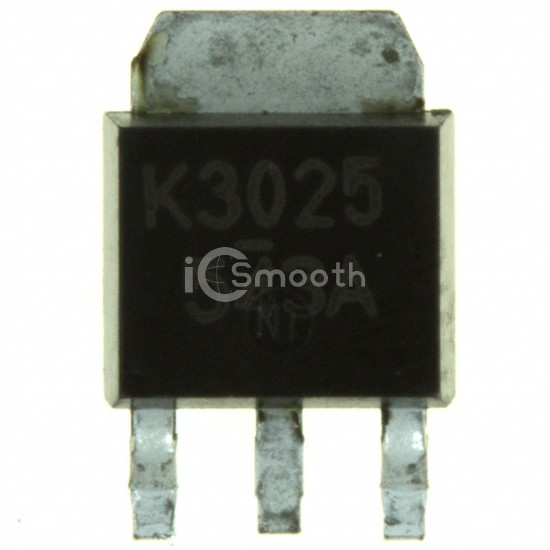

2SK302500L

MOSFET N-CH 60V 30A U-DL

2SK302500L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 60V 30A U-DL. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-4, DPak (3 Leads + Tab).

Datasheet Request a Quote

In Stock: 8,752

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	40mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 25W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DL
Package / Case	TO-252-4, DPak (3 Leads + Tab)
