2SK0615

In Stock: 7,330

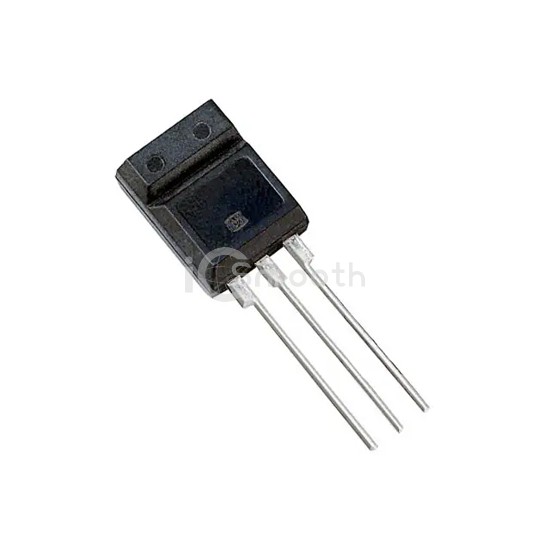

2SK0615 - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Single
REF: 2SK0615 Panasonic Electronic Components
2SK0615

Panasonic Electronic Components

MOSFET N-CH 80V 500MA M-A1

2SK0615 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 80V 500MA M-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP.

Datasheet Request a Quote

In Stock: 7,330

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)20V
Input Capacitance (Ciss) (Max) @ Vds45 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageM-A1
Package / Case3-SIP
