Name: 2SJ058200L
Brand: Panasonic Electronic Components
SKU: 2SJ058200L
Availability: InStock

REF: 2SJ058200L Panasonic Electronic Components

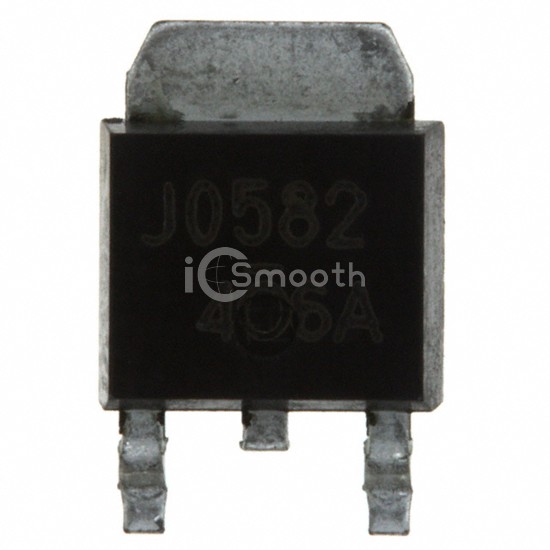

2SJ058200L

MOSFET P-CH 200V 2A U-G2

2SJ058200L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET P-CH 200V 2A U-G2. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,515

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	400 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 10W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-G2
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
