Name: APS1551SX
Brand: Panasonic Electric Works
SKU: APS1551SX
Price: 5.16 USD
Availability: InStock

REF: APS1551SX Panasonic Electric Works

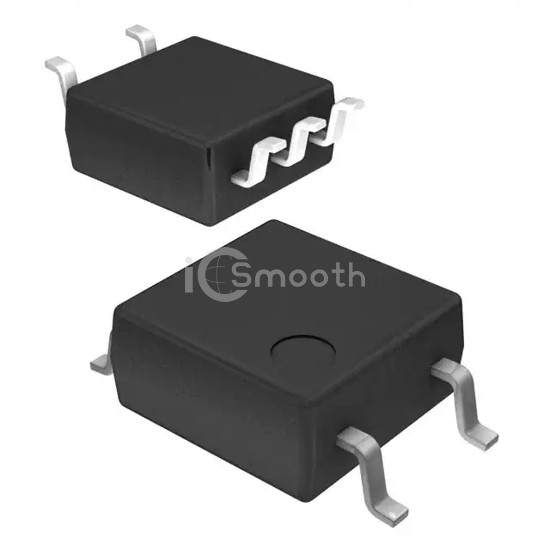

APS1551SX

Panasonic Electric Works

OPTOISO 3.75KV PUSH PULL

APS1551SX is a Optoisolators - Logic Output manufactured by Panasonic Electric Works. OPTOISO 3.75KV PUSH PULL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 341

Tiered Pricing USD

1+ $5.1600 —

10+ $3.8430 -26%

100+ $3.0680 -41%

500+ $2.7370 -47% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	50Mbps

Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Rise / Fall Time (Typ)	4ns, 5ns
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	6-SO, 5 Lead
