Name: NS5A4684SMNTBG
Brand: onsemi
SKU: NS5A4684SMNTBG
Price: 0.74 USD
Availability: InStock

REF: NS5A4684SMNTBG onsemi

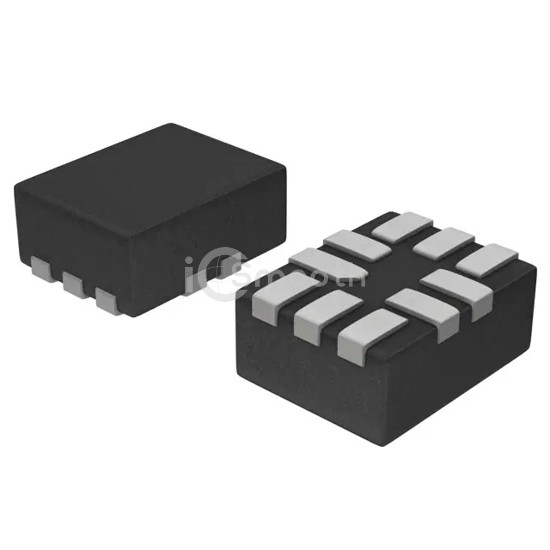

NS5A4684SMNTBG

IC ANLG SWITCH DUAL SPDT 10WQFN

NS5A4684SMNTBG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC ANLG SWITCH DUAL SPDT 10WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 11,318

Tiered Pricing USD

1+ $0.7400 —

10+ $0.5250 -29%

25+ $0.4716 -36%

100+ $0.4130 -44%

250+ $0.3850 -48%

500+ $0.3682 -50%

1,000+ $0.3635 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	400mOhm
Channel-to-Channel Matching (ΔRon)	100mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns

-3db Bandwidth	19MHz
Charge Injection	38pC
Channel Capacitance (CS(off), CD(off))	60pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFQFN
Supplier Device Package	10-WQFN (1.4x1.8)
