Name: NLAS9431MTR2G
Brand: onsemi
SKU: NLAS9431MTR2G
Price: 1.17 USD
Availability: InStock

REF: NLAS9431MTR2G onsemi

NLAS9431MTR2G

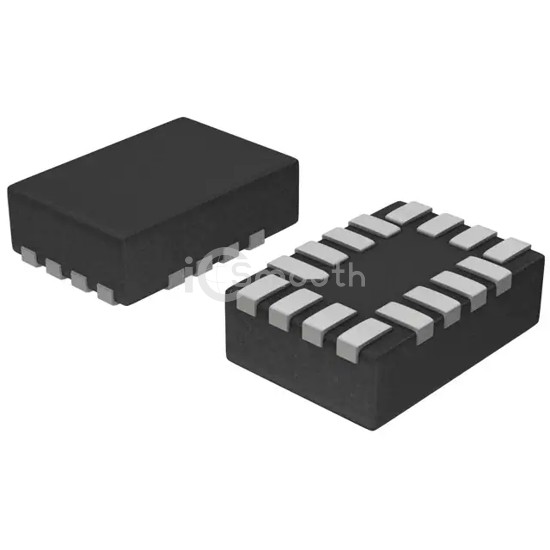

IC SWITCH DUAL DPDT 16WQFN

NLAS9431MTR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 23,320

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	2V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	14ns, 5ns

-3db Bandwidth	175MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	10pF, 10pF
Current - Leakage (IS(off)) (Max)	10µA
Crosstalk	-98dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-WQFN (1.8x2.6)
