Name: NLAS6233MUTBG
Brand: onsemi
SKU: NLAS6233MUTBG
Availability: InStock

REF: NLAS6233MUTBG onsemi

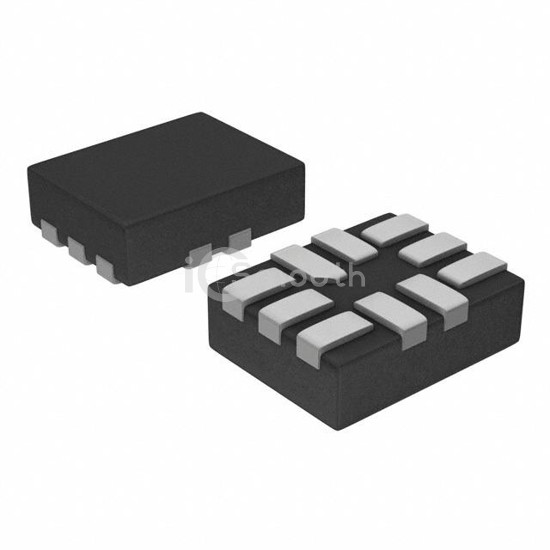

NLAS6233MUTBG

IC SWITCH DPDT DUAL 10UQFN

NLAS6233MUTBG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DPDT DUAL 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,649

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	550mOhm
Channel-to-Channel Matching (ΔRon)	190mOhm
Voltage - Supply, Single (V+)	2.7V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	17ns, 9ns

-3db Bandwidth	36MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	45pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-98dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.4x1.8)
