Name: NLAS52231MUR2G
Brand: onsemi
SKU: NLAS52231MUR2G
Price: 0.74 USD
Availability: InStock

REF: NLAS52231MUR2G onsemi

NLAS52231MUR2G

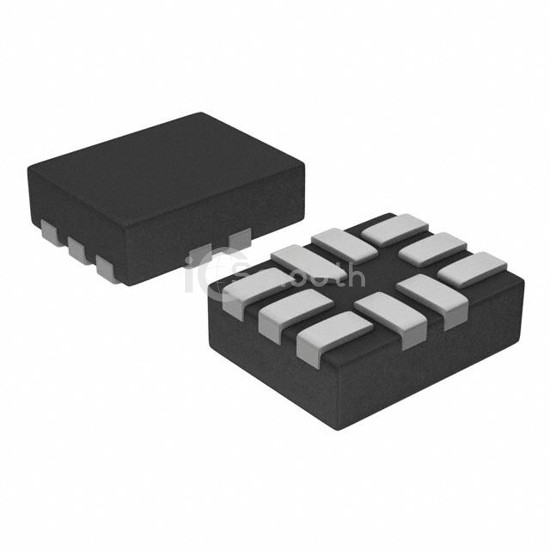

IC SWITCH DUAL SPDT 10UQFN

NLAS52231MUR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 143,448

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	430mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns

-3db Bandwidth	36MHz
Charge Injection	53pC
Channel Capacitance (CS(off), CD(off))	39pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-88dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.4x1.8)
