Name: NLAS4783MN1R2G
Brand: onsemi
SKU: NLAS4783MN1R2G
Price: 2.21 USD
Availability: InStock

REF: NLAS4783MN1R2G onsemi

NLAS4783MN1R2G

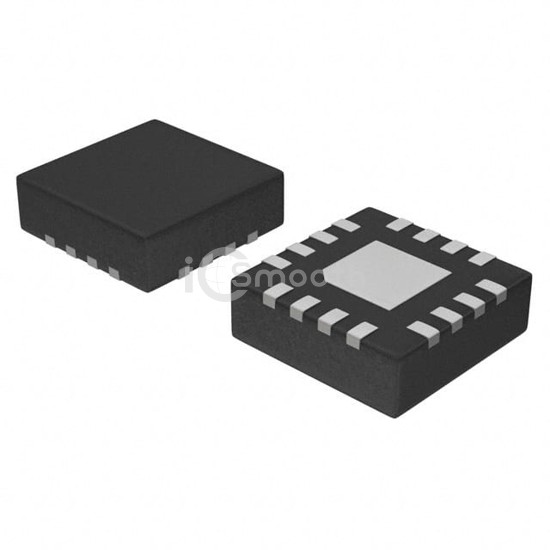

IC SWITCH TRIPLE SPDT 16QFN

NLAS4783MN1R2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH TRIPLE SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 3.

Datasheet Request a Quote

In Stock: 1,134

Tiered Pricing USD

1+ $2.2100 —

10+ $1.3780 -38%

25+ $1.1620 -47%

100+ $0.9171 -59% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	1Ohm
Channel-to-Channel Matching (ΔRon)	400mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	27ns, 20ns

-3db Bandwidth	17MHz
Charge Injection	50pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-62dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
