Name: NLAS4717EPMTR2G
Brand: onsemi
SKU: NLAS4717EPMTR2G
Price: 0.68 USD
Availability: InStock

REF: NLAS4717EPMTR2G onsemi

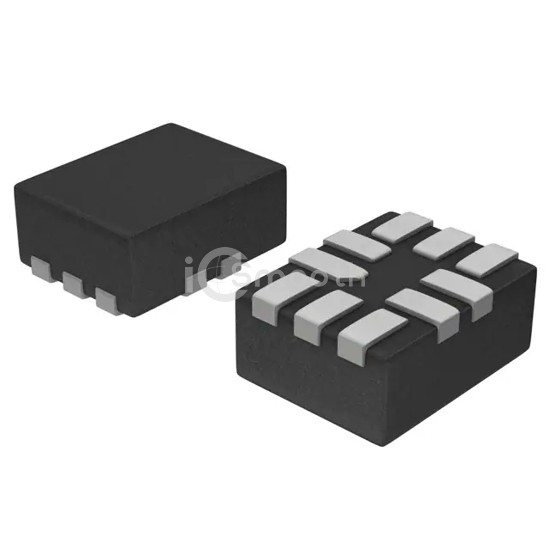

NLAS4717EPMTR2G

IC SWITCH DUAL SPDT 10WQFN

NLAS4717EPMTR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	3.5Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 40ns

-3db Bandwidth	90MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	15pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-110dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFQFN
Supplier Device Package	10-WQFN (1.4x1.8)
