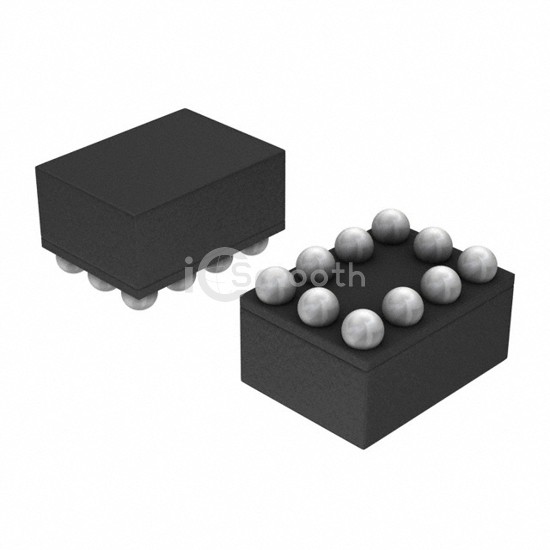

Name: NLAS4685FCT1
Brand: onsemi
SKU: NLAS4685FCT1
Price: 0.88 USD
Availability: InStock

REF: NLAS4685FCT1 onsemi

NLAS4685FCT1

IC SWITCH DUAL SPDT 10MICROBUMP

NLAS4685FCT1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10MICROBUMP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 10-UFBGA, FCBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 38,540

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 25ns

-3db Bandwidth	11.5MHz
Charge Injection	20pC
Channel Capacitance (CS(off), CD(off))	208pF, 102pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-81dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFBGA, FCBGA
Supplier Device Package	10-Microbump
