Name: NLAS4684MNR2G
Brand: onsemi
SKU: NLAS4684MNR2G
Price: 1.11 USD
Availability: InStock

REF: NLAS4684MNR2G onsemi

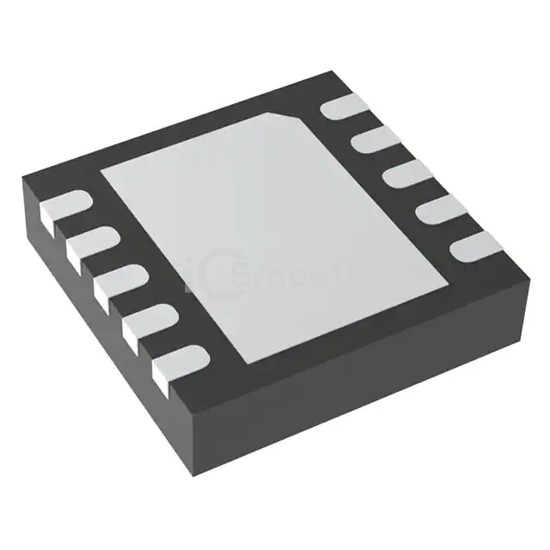

NLAS4684MNR2G

IC SWITCH DUAL SPDT 10DFN

NLAS4684MNR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 23,985

Tiered Pricing USD

1+ $1.1100 —

10+ $0.9940 -10% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 30ns

-3db Bandwidth	9.5MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	102pF, 104pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-83dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
