Name: NLAS3799MNR2G
Brand: onsemi
SKU: NLAS3799MNR2G
Price: 1.59 USD
Availability: InStock

REF: NLAS3799MNR2G onsemi

NLAS3799MNR2G

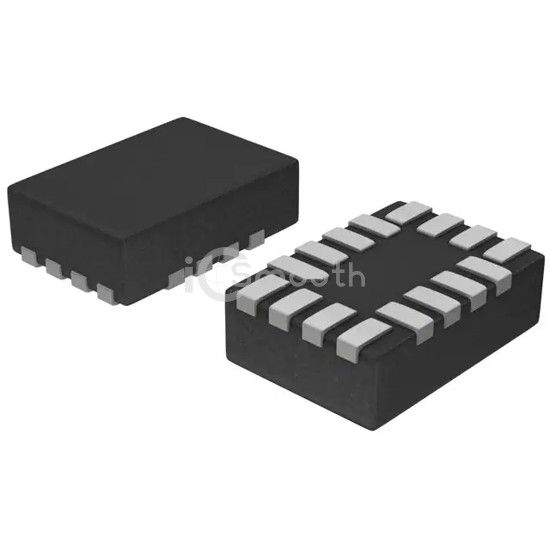

IC SWITCH DUAL DPDT 16WQFN

NLAS3799MNR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 258,688

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	400mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns

-3db Bandwidth	19MHz
Charge Injection	42pC
Channel Capacitance (CS(off), CD(off))	3pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-WQFN (1.8x2.6)
