Name: NLAS3699MN1R2G
Brand: onsemi
SKU: NLAS3699MN1R2G
Price: 0.89 USD
Availability: InStock

REF: NLAS3699MN1R2G onsemi

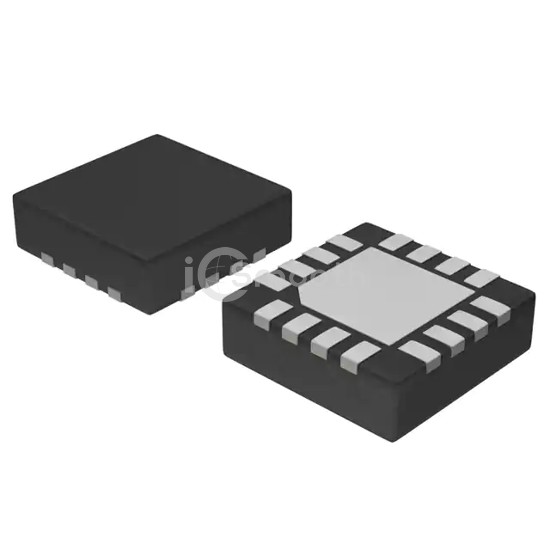

NLAS3699MN1R2G

IC SWITCH DUAL DPDT 16QFN

NLAS3699MN1R2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 119,509

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	550mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 50ns

-3db Bandwidth	20MHz
Charge Injection	50pC
Channel Capacitance (CS(off), CD(off))	7pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-62dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
