Name: NLAS3158MNR2G
Brand: onsemi
SKU: NLAS3158MNR2G
Price: 0.87 USD
Availability: InStock

REF: NLAS3158MNR2G onsemi

NLAS3158MNR2G

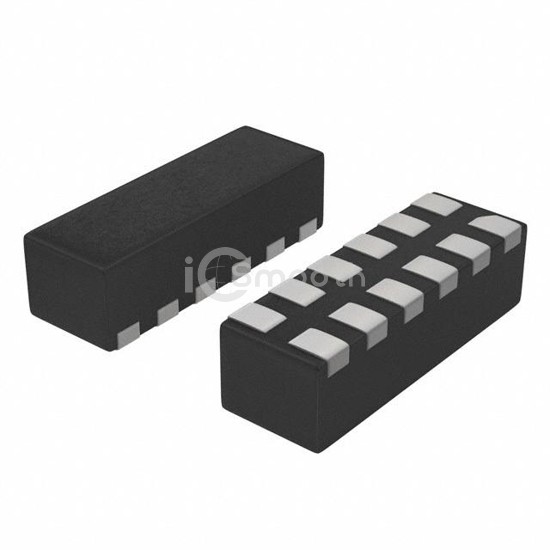

IC SWITCH DUAL SPDT 12DFN

NLAS3158MNR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 12DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 12-WFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,336

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	13Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.2ns, 3.5ns

-3db Bandwidth	250MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	2.3pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (3x1)
