Name: NCV8406DTDRKG
Brand: onsemi
SKU: NCV8406DTDRKG
Availability: InStock

REF: NCV8406DTDRKG onsemi

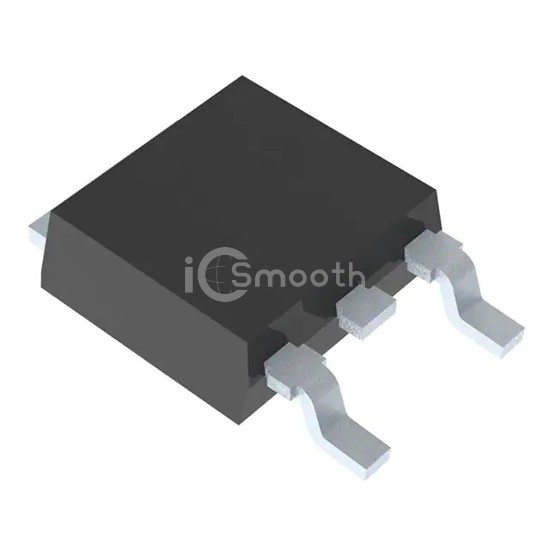

NCV8406DTDRKG

IC PWR DRIVER N-CHANNEL 1:1 DPAK

NCV8406DTDRKG is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR DRIVER N-CHANNEL 1:1 DPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 6,512

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	60V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	10.5A
Rds On (Typ)	185mOhm
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
