Name: NCV47823PAAJR2G
Brand: onsemi
SKU: NCV47823PAAJR2G
Price: 3.55 USD
Availability: InStock

REF: NCV47823PAAJR2G onsemi

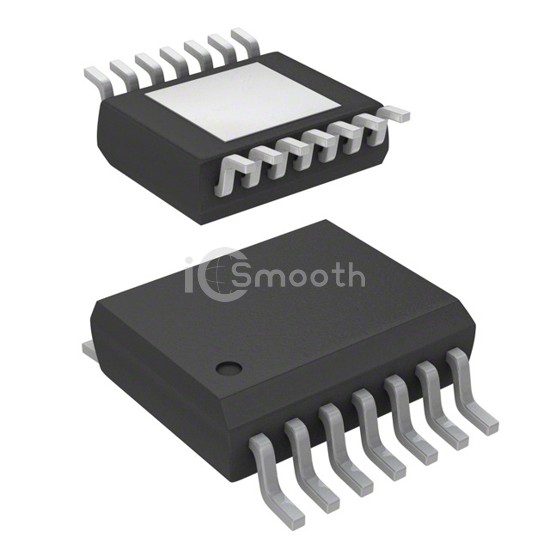

NCV47823PAAJR2G

IC PWR SWTCH BIPOLAR 1:2 14TSSOP

NCV47823PAAJR2G is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWTCH BIPOLAR 1:2 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 5,693

Tiered Pricing USD

1+ $3.5500 —

10+ $2.2730 -36%

25+ $1.9384 -45%

100+ $1.5604 -56%

250+ $1.3746 -61%

500+ $1.2604 -64%

1,000+ $1.1647 -67% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	Bipolar
Interface	Logic
Voltage - Load	40V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	350mA
Rds On (Typ)	-
Input Type	Non-Inverting
Features	PWM Input
Fault Protection	Current Limiting (Adjustable), Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP-EP
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
