Name: NCV47822PAAJR2G
Brand: onsemi
SKU: NCV47822PAAJR2G
Price: 2.38 USD
Availability: InStock

REF: NCV47822PAAJR2G onsemi

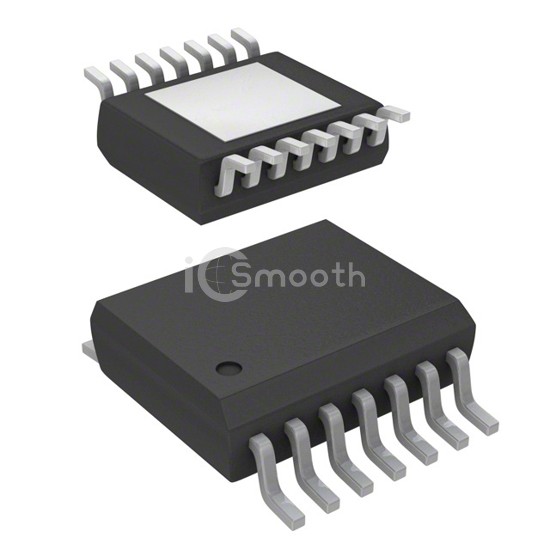

NCV47822PAAJR2G

IC PWR SWTCH BIPOLAR 1:1 14TSSOP

NCV47822PAAJR2G is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWTCH BIPOLAR 1:1 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 4,769

Tiered Pricing USD

1+ $2.3800 —

10+ $1.7660 -26%

25+ $1.6124 -32%

100+ $1.4436 -39%

250+ $1.3632 -43%

500+ $1.3147 -45%

1,000+ $1.2748 -46% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	Bipolar
Interface	On/Off
Voltage - Load	4.4V ~ 40V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	350mA
Rds On (Typ)	-
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP-EP
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
