NCV1397BDR2G

In Stock: 8,073

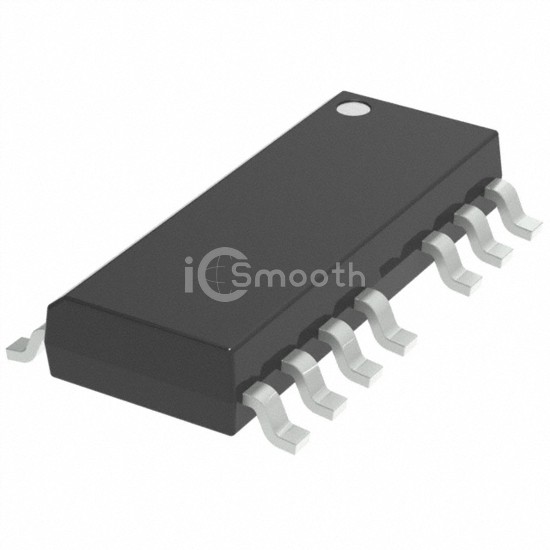

NCV1397BDR2G - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: NCV1397BDR2G onsemi
NCV1397BDR2G

onsemi

IC OFFLINE SW HALF-BRDG 16SOIC

NCV1397BDR2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 8,073

Tiered Pricing USD
1+ $2.7100 —
10+ $1.7090 -37%
25+ $1.4476 -47%
100+ $1.1524 -57%
250+ $1.0073 -63%
500+ $0.9180 -66%
1,000+ $0.8432 -69% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up10.5 V
Voltage - Supply (Vcc/Vdd)9.5V ~ 20V
Duty Cycle50%
Frequency - Switching60kHz ~ 500kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit
Control FeaturesFrequency Control
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width), 15 Leads
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
