FSQ510

In Stock: 6

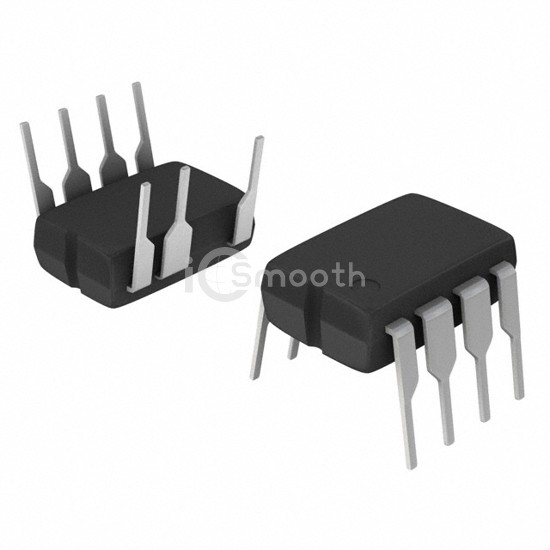

FSQ510 - onsemi - PMIC - AC DC Converters, Offline Switchers
REF: FSQ510 onsemi
FSQ510

onsemi

IC OFFLINE SWITCH FLYBACK 7DIP

FSQ510 is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 140°C (TJ), voltage - supply (vcc/vdd) 6.7V ~ 20V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 6

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up8.7 V
Voltage - Supply (Vcc/Vdd)6.7V ~ 20V
Duty Cycle60%
Frequency - Switching94.3kHz ~ 132kHz
Power (Watts)9 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature
Control FeaturesSync
Operating Temperature-40°C ~ 140°C (TJ)
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package7-DIP
Mounting TypeThrough Hole
