Name: NCP45541IMNTWG-H
Brand: onsemi
SKU: NCP45541IMNTWG-H
Price: 2.81 USD
Availability: InStock

REF: NCP45541IMNTWG-H onsemi

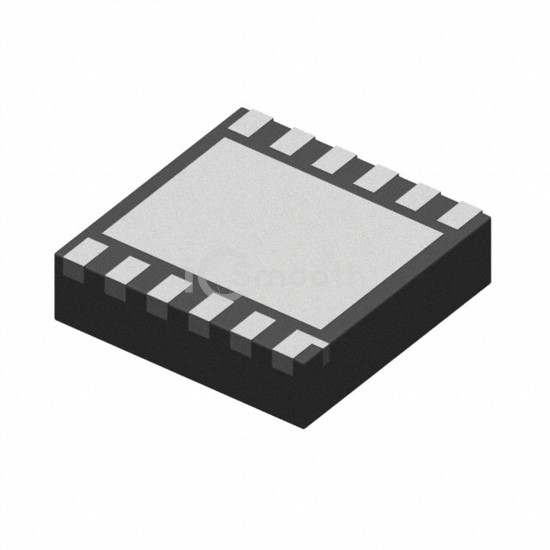

NCP45541IMNTWG-H

IC PWR SWITCH N-CHAN 1:1 12DFN

NCP45541IMNTWG-H is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 12-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,401

Tiered Pricing USD

1+ $2.8100 —

10+ $1.7740 -37%

25+ $1.5044 -46%

100+ $1.1993 -57%

250+ $1.0494 -63%

500+ $0.9571 -66%

1,000+ $0.8799 -69% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	20A
Rds On (Typ)	4.8mOhm
Input Type	Non-Inverting
Features	Power Good, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	12-DFN (3x3)
Package / Case	12-VFDFN Exposed Pad
