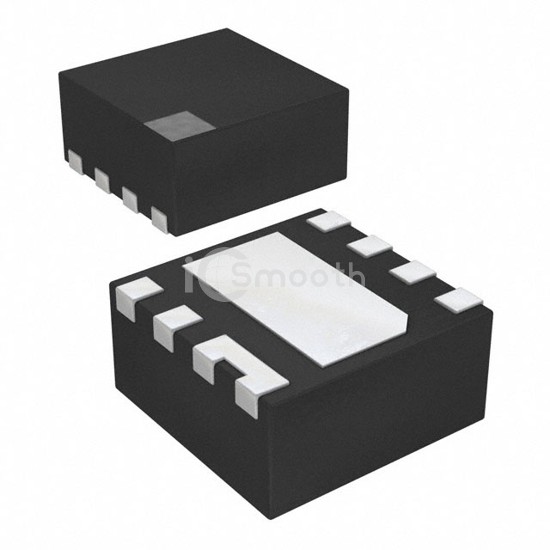

Name: NCP45525IMNTWG-L
Brand: onsemi
SKU: NCP45525IMNTWG-L
Price: 1.19 USD
Availability: InStock

REF: NCP45525IMNTWG-L onsemi

NCP45525IMNTWG-L

IC PWR SWITCH N-CHAN 1:1 8DFN

NCP45525IMNTWG-L is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,929

Tiered Pricing USD

1+ $1.1900 —

10+ $0.8650 -27%

25+ $0.7824 -34%

100+ $0.6916 -42%

250+ $0.6484 -46%

500+ $0.6223 -48%

1,000+ $0.6008 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	18mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (2x2)
Package / Case	8-VFDFN Exposed Pad
