Name: NCP45523IMNTWG-H
Brand: onsemi
SKU: NCP45523IMNTWG-H
Price: 0.57 USD
Availability: InStock

REF: NCP45523IMNTWG-H onsemi

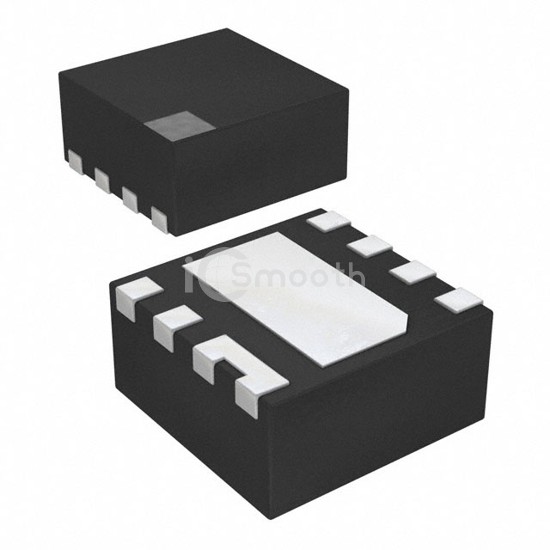

NCP45523IMNTWG-H

IC PWR SWITCH N-CHAN 1:1 8DFN

NCP45523IMNTWG-H is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Request a Quote

In Stock: 3,484

Tiered Pricing USD

3,000+ $0.5678 —

6,000+ $0.5455 -4% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	-
Output Type	N-Channel
Interface	-
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	21.9mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (2x2)
Package / Case	8-VFDFN Exposed Pad
