Name: NCP4545IMNTWG-L
Brand: onsemi
SKU: NCP4545IMNTWG-L
Price: 1.70 USD
Availability: InStock

REF: NCP4545IMNTWG-L onsemi

NCP4545IMNTWG-L

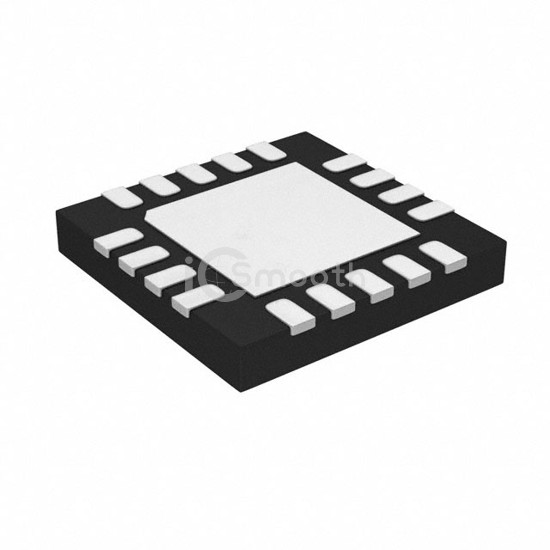

IC PWR SWITCH N-CHAN 1:1 18QFN

NCP4545IMNTWG-L is a PMIC - Power Distribution Switches, Load Drivers manufactured by onsemi. IC PWR SWITCH N-CHAN 1:1 18QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 18-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,717

Tiered Pricing USD

1+ $1.7000 —

10+ $1.2430 -27%

25+ $1.1300 -34%

100+ $1.0056 -41%

250+ $0.9462 -44%

500+ $0.9105 -46%

1,000+ $0.8810 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	10.5A
Rds On (Typ)	4.9mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	-
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	18-QFN (3x3)
Package / Case	18-VFQFN Exposed Pad
